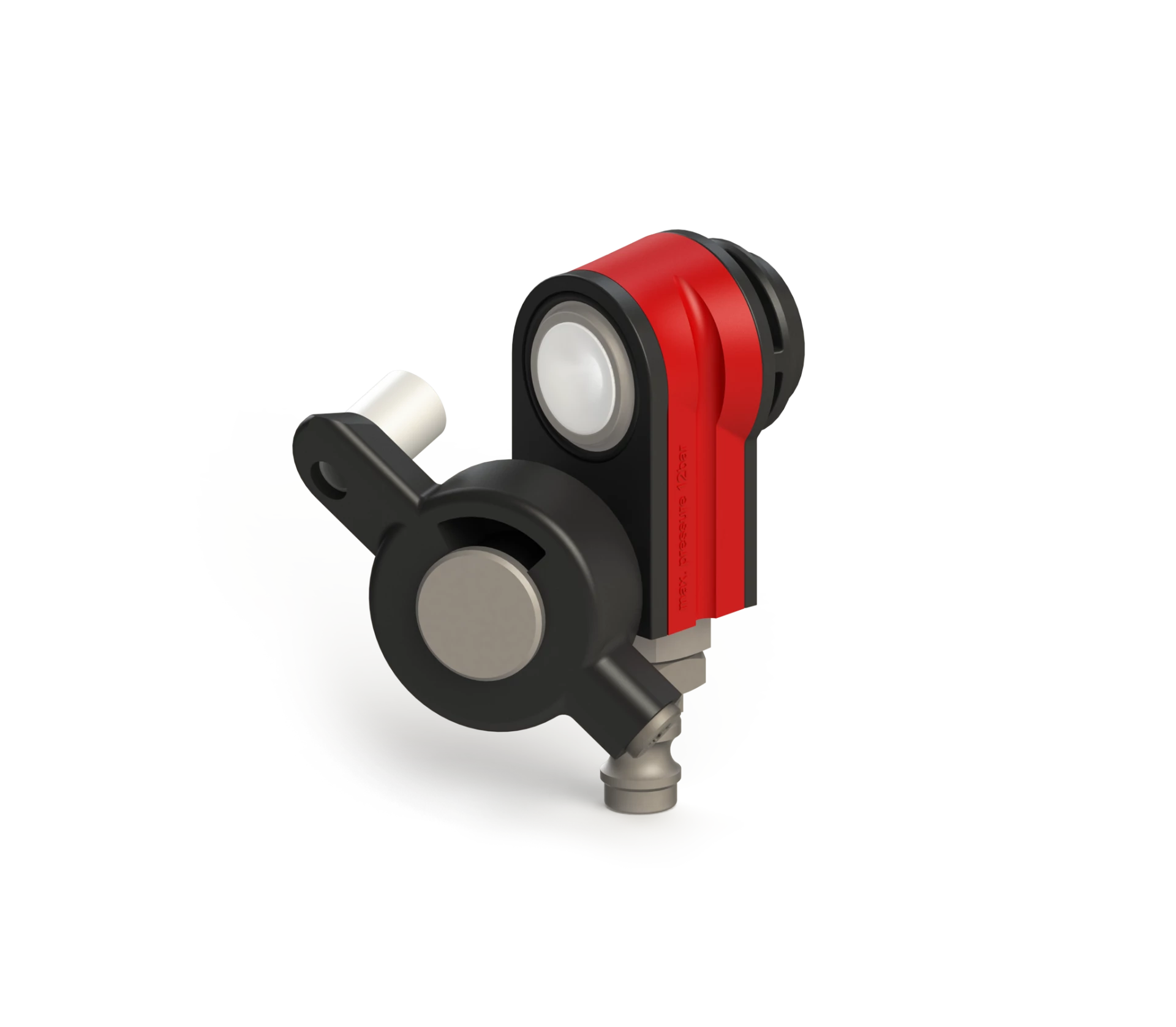

ATYJet-RC

HEBERLEIN. ATYJET-RC.

Features and Benefits.

The ATYJet-RC combines the best of established HemaJet T-jet technology with a modern, performance-optimised design.

Technical data.

Application area

Type	Total count of feed	Single filament counts	Max. overfeed effect yarns	Winding speed
RC311	80 … 360 dtex	1.0 … 2.5 dtex	… 60 %	… 650 m/min
RC321	150 … 500 dtex	1.0 … 3.5 dtex	… 60 %	… 650 m/min

All specifications are non-binding reference values.

Air consumption

Type	Air channel diameter	Formula
RC311	3 x 0.60 mm	q_vn = 0.54 x (p_e + 1)
RC321	3 x 0.75 mm	q_vn = 0.81 x (p_e + 1)

p_e= overpressure [bar]q_vn= air consumption [m³/h] (standard conditions according to DIN1343)

Compressed air requirements

Overpressure

7.0 … 12.0 bar

For the compressed air quality requirements, see Compressed air purity.
