Features and Benefits.

The LufanStat is used for aspirating, the LufanStat-Cut for aspirating and cutting yarns and cables.

Assortment.

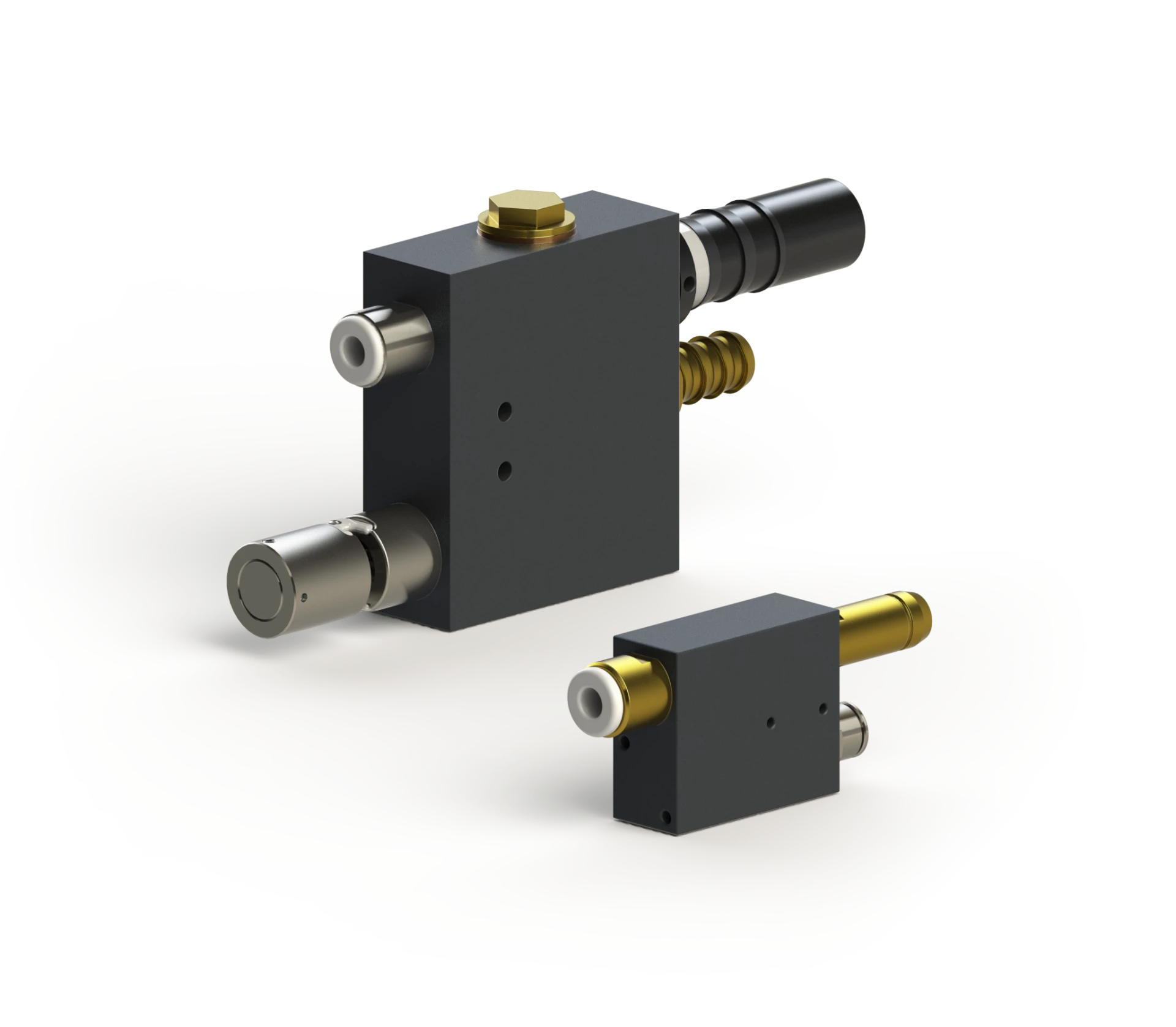

LufanStat

For aspirating technical filament yarns, staple yarn tows, and carpet yarns made of various fibre raw materials for speeds up to 2,000 m/min and counts up to max. dtex 10,000.

LufanStat-Cut

Suction and cutting blocks combine the functions of cutting and suctioning. For technical filament yarns, fibre tows, and carpet yarns up to 5,000 m/min. On request, with electropneumatic control.

Technical data.

Application area

Type

Max. count [dtex]

Thread speed [m/min]

Yarn is twisted during extraction

LufanStat (without cutting function)

65

… 2000

… 2000

no

80

… 10000

… 2000

no

10/6/2

… 15000

… 5000

yes

LufanStat-Cut (with cutting function)

10/6/2-I00-I5

… 15000

… 5000

yes

LC10-I100-I5

… 35000

… 5000

yes

LC15-I100-I5

… 35000

… 5000

yes

LC15-I100-I7

… 35000

… 5000

yes
All specifications are non-binding reference values.

Air consumption

Type

Formula

LufanStat (without cutting function)

65

qvn = 10 x (pe + 1)

80

qvn = 13 x (pe + 1)

10/6/2

qvn = 12.5 x (pe + 1)

LufanStat-Cut (with cutting function)

10/6/2-I00

qvn = 12.5 x (pe + 1)

LC10-I100

qvn = 38 x (pe + 1)

LC15-I100

qvn = 19 x (pe + 1)

pe = overpressure [bar]qvn = air consumption [m3/h] (standard conditions according to DIN1343)

Compressed air requirements

Aspirating unit operating pressure

  • Type 65, 80, 10/6/2: 4 … 10 bar

  • Type LC10-I100, LC15-I100: 4 … 15 bar

Cutting unit operating pressure

  • 4 … 10 bar

Maximum residual oil content (2*)

0.1 mg/m3

Maximum residual dust content (3*)

  • Particle size 5 µm

  • Particle density 5 mg/m3

Maximum residual water content (5*)

  • Residual water 7.732 g/m3

  • Pressure dew point + 7 °C

* Quality class according to DIN ISO 8573-1

Request operating instructions.

Would you like to receive an operating manual for your product? Request now.
