HEBERLEIN. POLYJET-SP-3.

Features and Benefits Assortment Technical data
Print Back to the product overview

Features and Benefits.

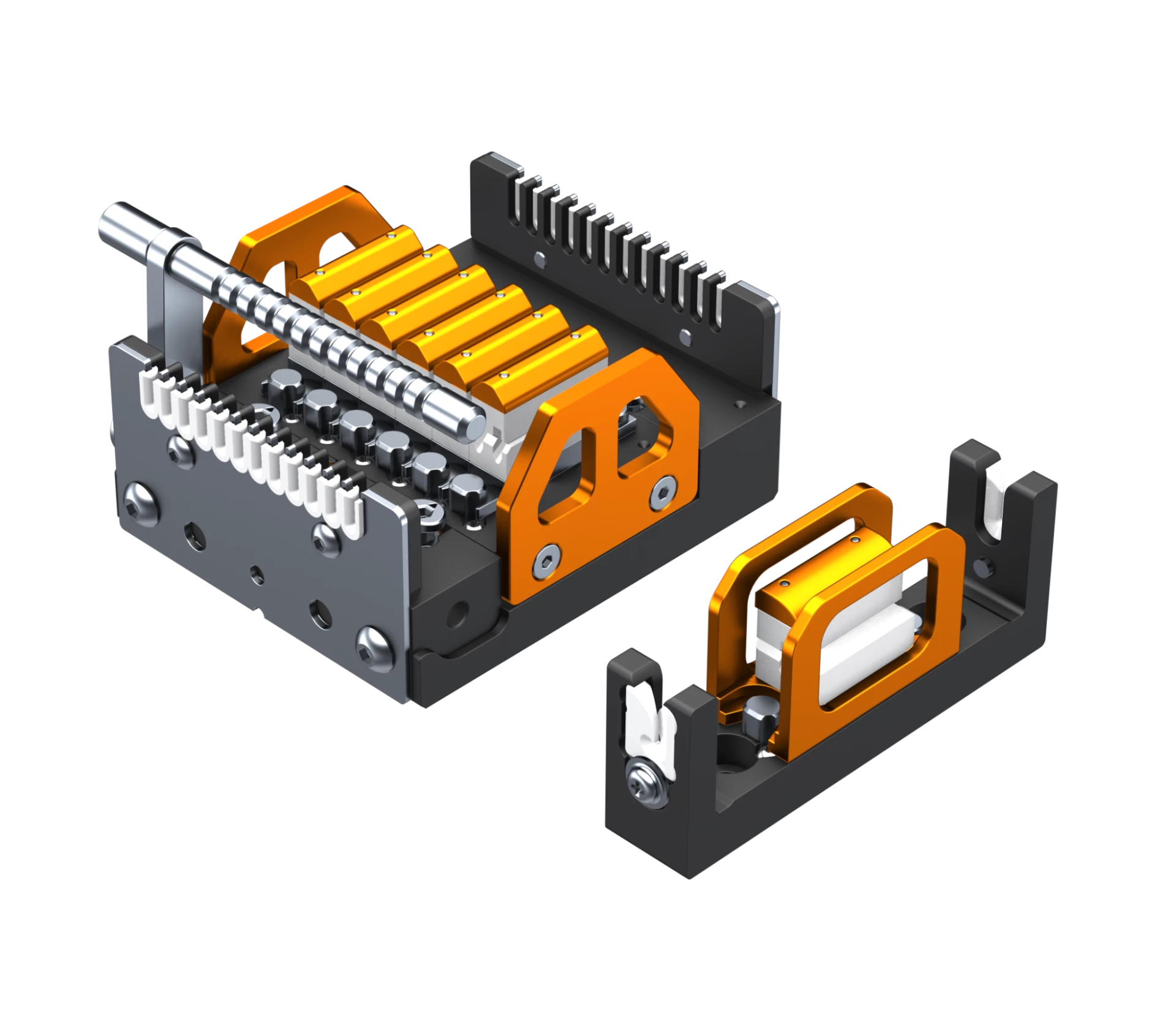

The PolyJet-SP-3 air interlacing jet raises the bar in terms of handling and process reliability. The unique quick-release system allows jet packs to be removed with just a single 180° turn.

Different variants for 1, 2, 4, 6, 8, 10, 12, 16, 20, 24 or 32 threads are available on request. Depending on the jet type, multiple jets with thread line spacing of 4, 6, 8, 10 or 12 mm are also available.

Assortment.

Series HP

Allows a higher interlacing performance than the HN series with reduced air consumption. The jet is suitable for all textile multifilament yarns.

Series HN

Ideal for intermingling or POY processes. It also offers attachment solutions for both Orka and WINGS.

Technical data.

Application area

Type

Count in
jet
[dtex]

Winding
speed
[m/min]

Yarn tension
after the jet
[cN/dtex]

Series HP

HP090A/WP01

… 55

… 6000

0.1 … 0.25

HP113A/WP10

… 95

… 6000

0.1 … 0.25

HP122A/WP10

… 95

… 6000

0.1 … 0.25

HP134A/WP20

55 … 167

… 6000

0.1 … 0.25

HP142A/WP20

55 … 167

… 6000

0.1 … 0.25

HP165A/WP30

110 … 300

… 6000

0.1 … 0.25

HP203A/WP40

220 … 420

… 6000

0.1 … 0.25

HP252A/WP50

400 … 800

… 6000

0.1 … 0.25

Series HN

HN112A/CN15

… 78

… 6000

0.1 … 0.25

HN121A/CN15

… 78

… 6000

0.1 … 0.25

HN133A/CN14

33 … 110

… 6000

0.1 … 0.25

HN132A/CN14

33 … 220

… 5000

0.1 … 0.25

HN141A/CN14

33 … 110

… 6000

0.1 … 0.25

HN163A/CN26

110 … 330

… 6000

0.1 … 0.25

HN164A/CN28

33 … 167

… 6000

0.1 … 0.25

HN202A/CN27

330 … 550

… 6000

0.1 … 0.25

HN251A/CN33

400 … 800

… 6000

0.1 … 0.25

All specifications are non-binding reference values.

Air consumption

Type

Air channel diameter

Formula

Series HP

HP090A/WP01

0.9 mm

qvn = 0.376 x (pe + 1)

HP113A/WP10

1.1 mm

qvn = 0.562 x (pe + 1)

HP122A/WP10

1.2 mm

qvn = 0.669 x (pe + 1)

HP134A/WP20

1.3 mm

qvn = 0.786 x (pe + 1)

HP142A/WP20

1.4 mm

qvn = 0.911 x (pe + 1)

HP165A/WP30

1.6 mm

qvn = 1.190 x (pe + 1)

HP203A/WP40

2.0 mm

qvn = 1.859 x (pe + 1)

HP252A/WP50

2.5 mm

qvn = 2,905 x (pe + 1)

Series HN

HN112A/CN15

1.1 mm

qvn = 0.562 x (pe + 1)

HN121A/CN15

1.2 mm

qvn = 0.669 x (pe + 1)

HN132A/CN14, HN133A/CN14

1.3 mm

qvn = 0.786 x (pe + 1)

HN141A/CN14

1.4 mm

qvn = 0.911 x (pe + 1)

HN163A/CN26, HN164A/CN28

1.6 mm

qvn = 1.190 x (pe + 1)

HN202A/CN27

2.0 mm

qvn = 1,859 x (pe + 1)

HN251A/CN33

2.5 mm

qvn = 2,905 x (pe + 1)
pe = overpressure [bar]qvn = air consumption per thread [m3/h] (standard conditions according to DIN1343)

Compressed air requirements

Overpressure

1.5 … 6.0 bar

For the compressed air quality requirements, see Compressed air purity.
