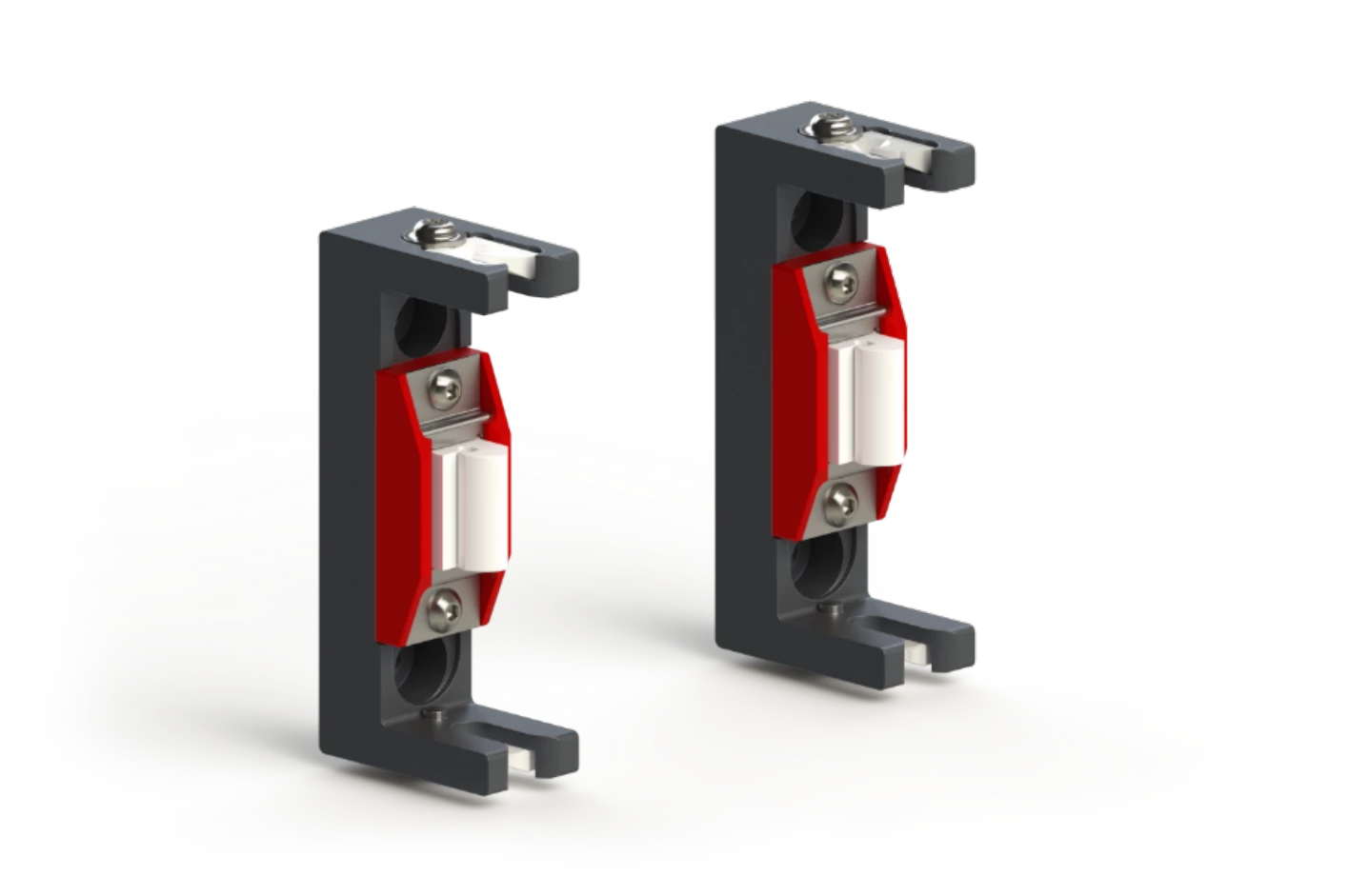

POY-Jet-SP

HEBERLEIN. POY-JET-SP.

Features and Benefits.

The POY-Jet-SP enables optimum interlacing performance and is versatile thanks to the well-established PolyJet-SP-2 jet connector. The yarn guides can be combined to meet virtually any customer requirement. The POY-Jet-SP is suitable for cost-optimised pre-interlacing or interlacing of POY yarns.

Technical data.

Application area

Type	Count in jet	Winding speed	Yarn tension after the jet
PJ11.0	… 110 dtex	… 5000 m/min	0.1 … 0.2 cN/dtex
PJ13.0	… 350 dtex	… 5000 m/min	0.1 … 0.2 cN/dtex

All specifications are non-binding reference values.

Air consumption

Type	Air channel diameter	Formula
PJ11.0	1.1 mm	q_vn = 0.562 x (p_e + 1)
PJ13.0	1.3 mm	q_vn = 0.786 x (p_e + 1)

p_e= overpressure [bar]q_vn= air consumption per thread [m³/h] (standard conditions according to DIN1343)

Compressed air requirements

POY-Jet-SP overpressure

1.0 … 4.0 bar

For the compressed air quality requirements, see Compressed air purity.
