SwissJet

HEBERLEIN. SWISSJET.

Features and Benefits.

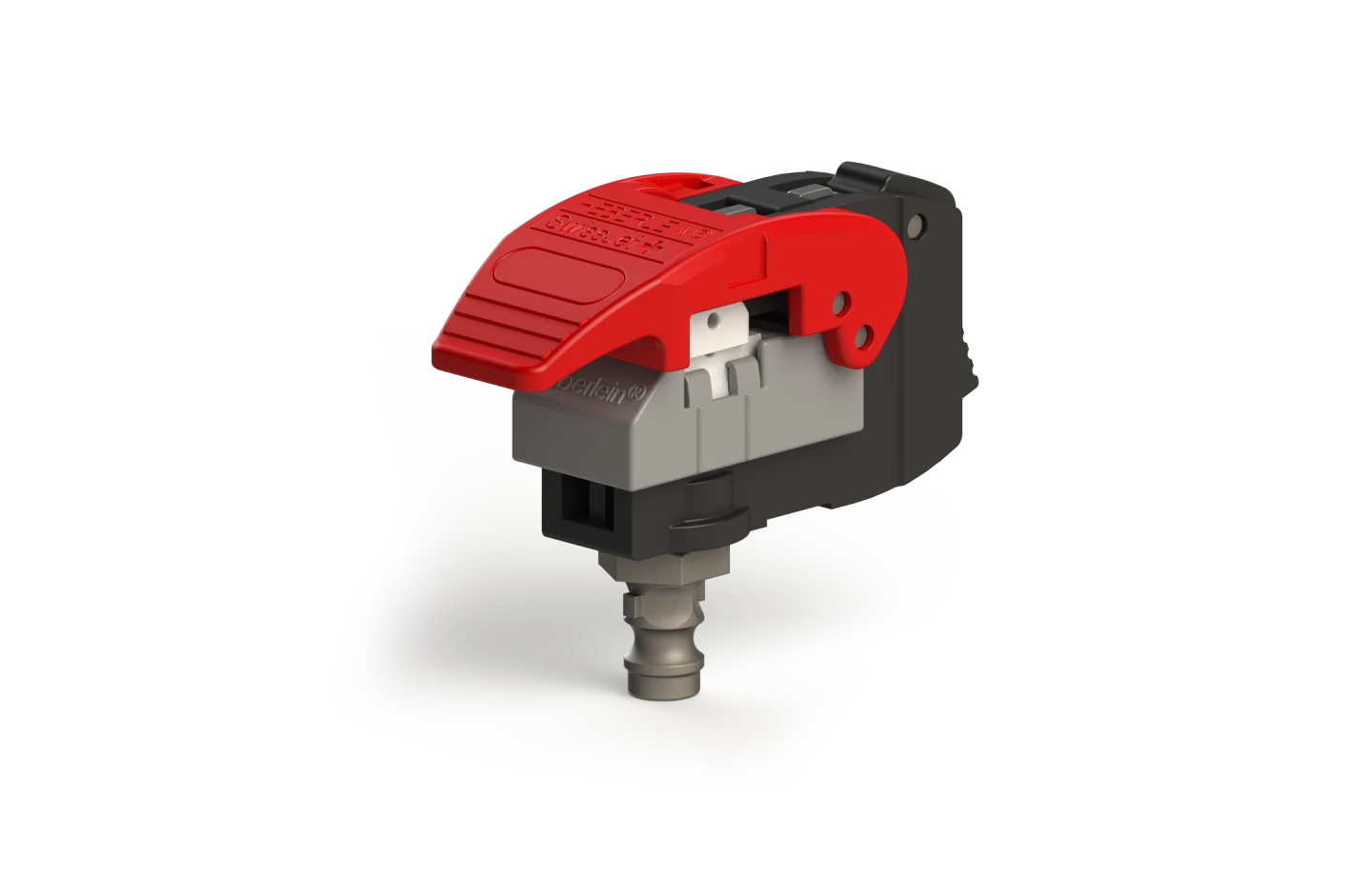

The SwissJet is designed for the effective interlacing of multifilament yarns during false-twist texturing. The jet has a housing that is specially reinforced with carbon fibres which give it particularly great strength during operation, a long service life, and a very low weight. Various jet inserts are available for the different yarn types.

Assortment.

Series APe

The APe series enables significant air savings of up to 15%. Existing jets can be replaced within seconds thanks to the 'plug & play' design. While the jets help to minimize the cost-intensive 'compressed air' resource, no compromises are required in terms of yarn quality. The investment pays for itself within a very short time.

Series APh

Designed to ensure maximum knot stability for downstream processes, such as weaving. A comprehensive series of tests have shown that up to 100% stability can be achieved at a load of 1 cN/dtex. This allows higher machine speeds and results in increased productivity. Alternatively, the sizing application can be reduced, which has a positive impact on costs and the environment.

Series P

The comprehensive P series covers a wide range of applications. Whether a light interlacing density with low stability is required, a strong interlacing density, high stability or microfilament yarns are processed - the variety of available jet types offers the right, cost-effective solution. Due to the very tight tolerances, this series offers a high uniformity from position to position. Customised types are available on request.

Series S

The cost-effective alternative to the P series with a scaled-down range of jet types.

Technical data.

Application area & air consumption

Series APe

Type	Ideal count	Count range	Air consumption formula
High interlacing density (80 – 180 FP/m) – light to medium stability
APe043	22 dtex	… 44 dtex	q_vn = 0.196 x (p_e + 1)
APe141	50 dtex	… 67 dtex	q_vn = 0.320 x (p_e + 1)
APe142	78 dtex	… 110 dtex	q_vn = 0.474 x (p_e + 1)
APe143	110 dtex	50 … 167 dtex	q_vn = 0.602 x (p_e + 1)
APe243	167 dtex	78 … 240 dtex	q_vn = 0.786 x (p_e + 1)
APe244	330 dtex	140 … 390 dtex	q_vn = 1.042 x (p_e + 1)
APe246	450 dtex	200 … 630 dtex	q_vn = 1.234 x (p_e + 1)
APe247	660 dtex	390 … 800 dtex	q_vn = 1.577 x (p_e + 1)

Series APh

Type	Ideal count	Count range	Ø Air channel	Air consumption formula
Medium interlacing density (70 – 90 FP/m) – high to very high stability
APh212	167 dtex	78 … 330 dtex	1.4 mm	q_vn = 0.911 x (p_e + 1)
APh213	330 dtex	110 … 630 dtex	1.6 mm	q_vn = 1.189 x (p_e + 1)
APh215	450 dtex	240 … 800 dtex	1.8 mm	q_vn = 1.506 x (p_e + 1)

Series P

Type	Ideal count	Count range	Ø Air channel	Air consumption formula
Low interlacing density (40 – 60 FP/m) – low stability
P310-2	110 dtex	50 … 167 dtex	1.4 mm	q_vn = 0.911 x (p_e + 1)
P410-2	167 dtex	78 … 240 dtex	1.6 mm	q_vn = 1.189 x (p_e + 1)
Medium interlacing density (70 – 90 FP/m) – medium to high stability
P211-2	78 dtex	20 … 140 dtex	1.3 mm	q_vn = 0.786 x (p_e + 1)
P212-2	167 dtex	78 … 330 dtex	1.4 mm	q_vn = 0.911 x (p_e + 1)
P213-2	330 dtex	110 … 630 dtex	1.6 mm	q_vn = 1.189 x (p_e + 1)
P215-2	450 dtex	240 … 800 dtex	1.8 mm	q_vn = 1.506 x (p_e + 1)
P312-2	660 dtex	330 … 1100 dtex	2.06 mm	q_vn = 1.859 x (p_e + 1)
P313-2	990 dtex	660 … 1200 dtex	2.2 mm	q_vn = 2.315 x (p_e + 1)
P412-2	1200 dtex	800 … 2000 dtex	2.5 mm	q_vn = 2.772 x (p_e + 1)
P414-2	1800 dtex	990 … 2400 dtex	3.0 mm	q_vn = 3.875 x (p_e + 1)
High interlacing density (80 – 160 FP/m) – low stability
P140-2	78 dtex	20 … 110 dtex	0.92 mm	q_vn = 0.393 x (p_e + 1)
High interlacing density (80 – 160 FP/m) – light to medium stability
P141-2	50 dtex	… 67 dtex	0.88 mm	q_vn = 0.360 x (p_e + 1)
P142-2	78 dtex	… 110 dtex	1.1 mm	q_vn = 0.562 x (p_e + 1)
P143-2	110 dtex	50 … 167 dtex	1.24 mm	q_vn = 0.712 x (p_e + 1)
P243-2	167 dtex	78 … 240 dtex	1.4 mm	q_vn = 0.911 x (p_e + 1)
P244-2	330 dtex	140 … 390 dtex	1.57 mm	q_vn = 1.142 x (p_e + 1)
P246-2	450 dtex	200 … 630 dtex	1.77 mm	q_vn = 1.451 x (p_e + 1)
P247-2	660 dtex	390 … 800 dtex	2.0 mm	q_vn = 1.785 x (p_e + 1)

Series S

Type	Ideal count	Count range	Ø Air channel	Air consumption formula
High interlacing density (80 – 160 FP/m) – light to medium stability
S1	78 dtex	… 110 dtex	1.1 mm	q_vn = 0.562 x (p_e + 1)
S2	110 dtex	50 … 167 dtex	1.24 mm	q_vn = 0.712 x (p_e + 1)
S3	167 dtex	78 … 240 dtex	1.4 mm	q_vn = 0.911 x (p_e + 1)
Medium interlacing density (70 – 90 FP/m) – medium to high stability
S12	167 dtex	78 … 330 dtex	1.4 mm	q_vn = 0.911 x (p_e + 1)
S13	330 dtex	110 … 630 dtex	1.6 mm	q_vn = 1.189 x (p_e + 1)
S14	450 dtex	240 … 800 dtex	1.8 mm	q_vn = 1,506 x (p_e + 1)
S16	660 dtex	330 … 1100 dtex	2.06 mm	q_vn = 1,859 x (p_e + 1)
S18	1200 dtex	800 … 2000 dtex	2.5 mm	q_vn = 2.772 x (p_e + 1)

All specifications are non-binding reference values.q_vn = air consumption per thread [m³/h] (DIN1343; applies from 0.8 bar); p_e = over pressure [bar]

Air savings: examples

Series APe versus P

Type	Air consumption formula	Type	Air consumption formula	Air savings¹⁾
APe141	q_vn = 0.320 x (p_e + 1)	P141-2	q_vn = 0.360 x (p_e + 1)	11.2 %	0.120 m³/h
APe142	q_vn = 0.474 x (p_e + 1)	P142-2	q_vn = 0.562 x (p_e + 1)	15.7 %	0.265 m³/h
APe143	q_vn = 0.602 x (p_e + 1)	P143-2	q_vn = 0.712 x (p_e + 1)	15.5 %	0.331 m³/h
APe243	q_vn = 0.786 x (p_e + 1)	P243-2	q_vn = 0.911 x (p_e + 1)	13.8 %	0.377 m³/h
APe244	q_vn = 1.042 x (p_e + 1)	P244-2	q_vn = 1.142 x (p_e + 1)	8.7 %	0.298 m³/h
APe246	q_vn = 1.234 x (p_e + 1)	P246-2	q_vn = 1.451 x (p_e + 1)	15.0 %	0.675 m³/h
APe247	q_vn = 1.577 x (p_e + 1)	P247-2	q_vn = 1.785 x (p_e + 1)	11.6 %	0.649 m³/h

1) Average values; data in m³/h at an overpressure of 2 barq_vn = air consumption per thread [m³/h] (DIN1343; applies from 0.8 bar); p_e = over pressure [bar]

Compressed air requirements

Overpressure

0.5 … 6.0 bar

For the compressed air quality requirements, see Compressed air purity.

Request operating instructions.
