WarpJet-KV

HEBERLEIN. WARPJET-KV.

Features and Benefits.

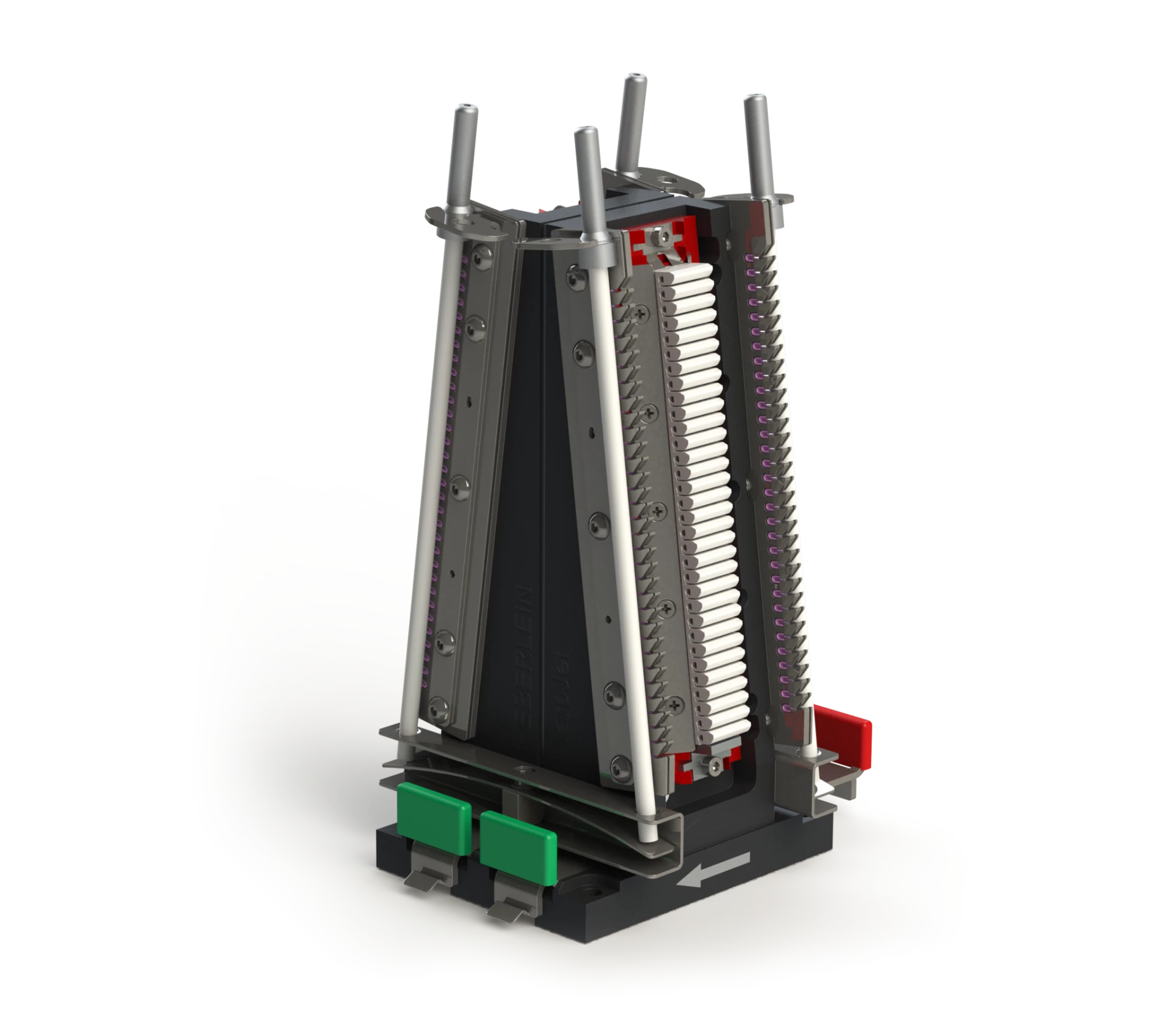

The WarpJet is used for efficient interlacing during warping. The fast and simple threading from above is combined with easy cleaning and reduced machine downtimes.

Assortment.

Series WJ

The cost-effective design for optimum interlacing performance.

Series HP

For the highest quality requirements for interlacing performance and positional uniformity.

General view.

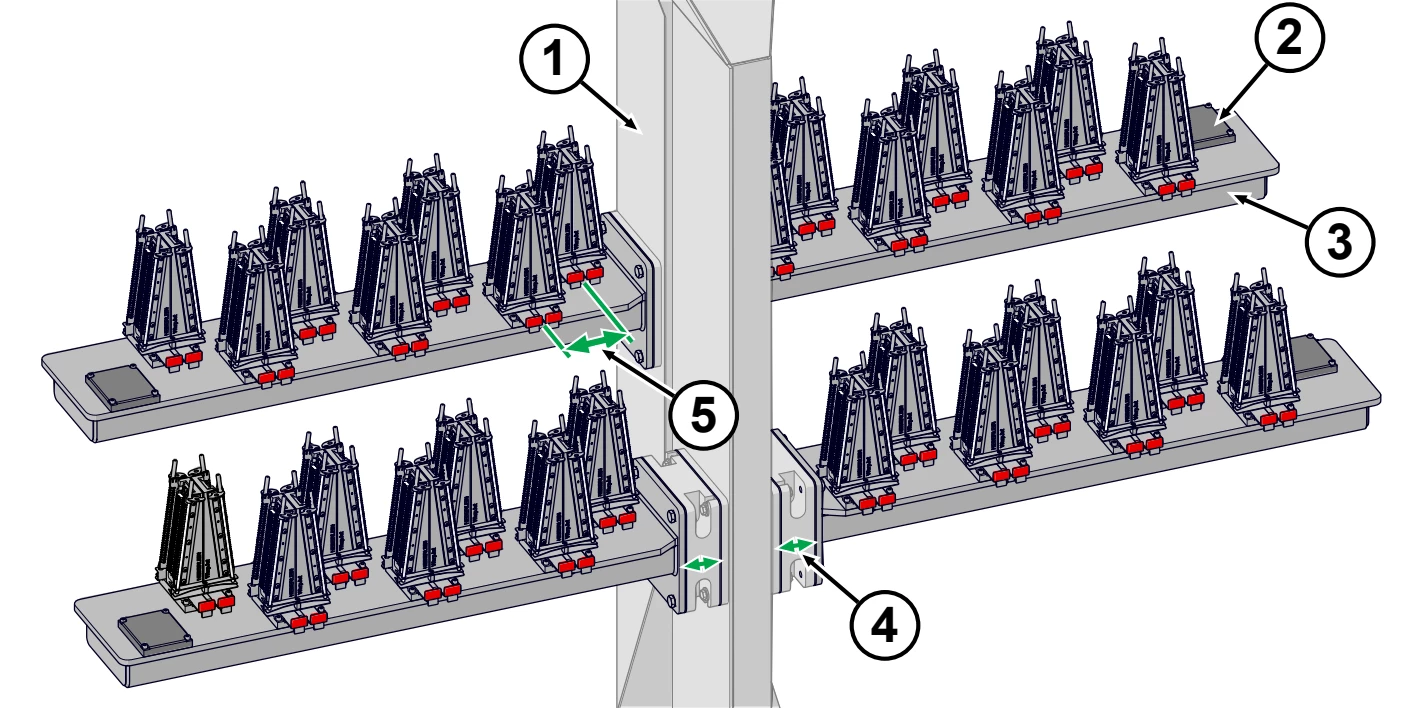

Example: 28 x WarpJet-KV with carrier for 1792 threads

1	Carrier for compressed air supply unit (not included in scope of delivery)
2	Closing plate for unused connection points
3	WarpJet-KV carrier
4	55 mm spacer for bottom carrier (optional)
5	WarpJet-KV clearance 110 mm

Technical data.

Application area

Type	Typical range [dtex] (in the jet)	(Max. limits of application)
HP090A/WP01	… 55	… 70
HP113A/WP10	… 110	… 140
HP134A/WP20	55 … 167	40 … 200
WJ11.0	… 110	… 167
WJ13.0	110 … 330	110 … 370

All specifications are non-binding reference values.

Air consumption per thread

Type	Air channel diameter	Formula
HP090A/WP01	0.9 mm	q_vn = 0.376 x (p_e + 1)
HP113A/WP10	1.1 mm	q_vn = 0.562 x (p_e + 1)
HP134A/WP20	1.3 mm	q_vn = 0.786 x (p_e + 1)
WJ11.0	1.1 mm	q_vn = 0.562 x (p_e + 1)
WJ13.0	1.3 mm	q_vn = 0.786 x (p_e + 1)

p_e= overpressure [bar]q_vn= air consumption per thread [m³/h] (standard conditions according to DIN1343)

Compressed air requirements

Overpressure

0.5 … 4.0 bar

For the compressed air quality requirements, see Compressed air purity.

Request operating instructions.
